Open Cell Grill Ceiling: What Is It?

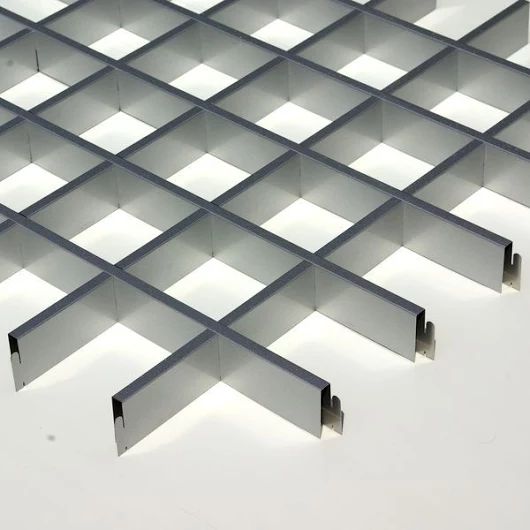

In essence, it is a straightforward lay-in ceiling made of a distinct kind of tile that is 595mm x 595mm in size. An interlocking strip system is used to create an open-cell tile. This system includes two sorts of strips, each measuring 595 mm by 15 mm by 42/50 mm. One form of strip is known as the male strip, and the other is the female strip. These strips interlock one after another in a pattern at a 90-degree angle depending on the size of the development cell, which can be 75 mm by 75 mm, 100 mm by 100 mm, or 150 mm by 150 mm. There are numerous different cell sizes here; however, I only describe those that are popular and easily accessible.
We employ a 15mm Tee grid system to frame an open-cell ceiling system. Prepare 600 × 600 mm boxes using a 15 mm tee grid system, then fill them with open-cell tiles. Following installation, tee grid runners and wall angel visibility only hidden in similarity and look comes from the bottom as the entire false ceiling is in a single piece, and it appear fantastic. Grid exposed width from bottom is 15mm, and open-cell tile strip exposed width from bottom is likewise 15mm.
Where should the Open-Cell Grill Ceiling be installed?
Learn about the fundamental characteristics of an open cell grill ceiling before trying to get the answer.
The Open Cell Grill ceiling, which is the first one, offers excellent acoustics because of its high dimensional structure and continuous angles. The sound frequency is diverted by the open cell grill ceiling, which prevents those frequencies from running simultaneously.
Therefore, if you need exceptional acoustic qualities, this is the best option.
Due to the lack of a plenum, the ceiling insulation property of the second type of insulation, the open cell grill, is poor. The area's surroundings come into direct contact with the main ceiling. In that instance, you do not benefit in terms of power usage or air conditioner efficiency. Therefore, if you need insulation, this is not the best option. In general, avoid situations when heat is involved.
The third one has a very sturdy structure because of the Open Cell Grill Ceiling's tee grid framing. It is suitable for usage both inside and outside. It could sustain high air pressure and remain steady.

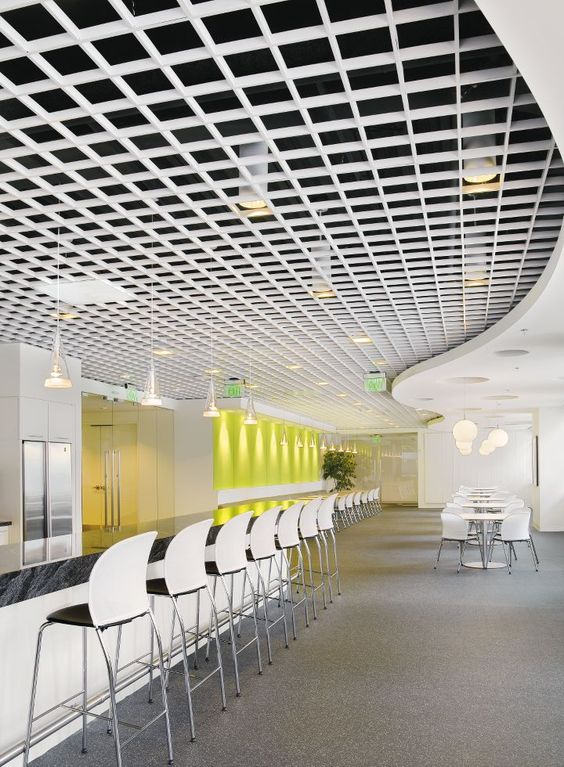

The fourth is design impact, where Open Cell Grill Ceiling creates a stunning appearance that may be used everywhere. If we keep the aforementioned considerations in mind, it fits well in restaurants, cafeterias, department stores, multiplexes, lobby’s, offices, gardens, traces, banquet halls, canteens, and lawns.
How is the cell size for the open cell grid ceiling determined?
You can choose from a variety of cell sizes in the Open Cell Grid Ceiling based on the size of the region. If the area is large, such as 1000 square meters, we advise choosing a small cell size of 75 by 75 millimeters; if the area is medium, such as 100 square meters, we advise choosing a medium cell size of 100 by 100 millimeters; and if the area is small, such as less than 100 square meters, we advise choosing a big cell size of 150 by 150 millimeters.
Here, the idea is that a tiny cell size provides a big area a compact appearance, whereas a big cell size gives a small area a lossy appearance.
How do I choose the Tee Grid type for the Open Cell Grid Ceiling?
Selecting the right Tee grid type for the Open Cell Grid Ceiling is crucial. If you want the natural look of an open cell grill ceiling, always use a 15mm plain tee grid in the color of the open cell tile. If you use a 24 mm tee grid or a different color of open cell tile, the symmetry of the entire ceiling will be broken, and the tiles will appear to be in separate 600 mm x 600 mm boxes.
Due to the somewhat higher weight of open-cell tile compared to standard lay-in tile, the tee grid thickness is also crucial for a solid construction in this case. Minimum is what we advise. The tee grid has a 25mm thickness. If the area is large and the cell size is modest (such as 75 mm × 75 mm), we recommend choosing. 28 thickness is an option if the cell size is large, such as 150 mm × 150 mm. 23mm thick is the bare minimum we recommend. 30mm thick.
How should the Open Cell Grill Ceiling be coloured?
White, black, grey, and brown are the typical hues used most frequently in open cell grill ceilings. The colour of your ceiling, windows, and doors must all be considered before making a choice. The colour of your open cell grill ceiling should contrast with the colour of your main ceiling and try to match the colour of your doors and windows.
Material Required: -
1.Open Cell Grill Tile
2.Tee Grid Main Runner
3.Tee Grid Cross Runner 4ft
4. Tee Grid Cross Runner 2ft
5.Edge Profile
6.Fastener
7.Wire
8.Screw
9. Butterfly clip

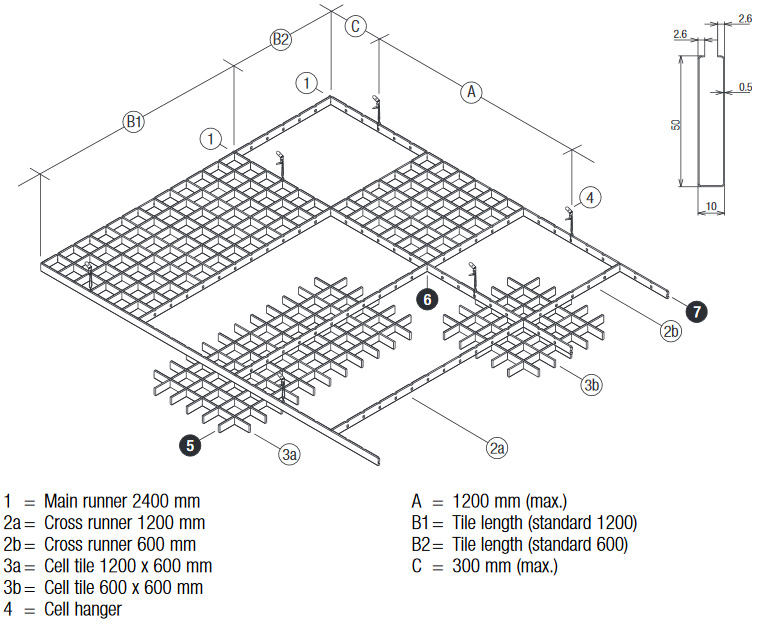

Drawing of Connection Open Cell Grill Ceiling:-
Installation: -
1. Wall angel/edge profiles should always be installed at the same height on all sides.
2. Whenever possible, install Open Cell Grill Ceiling on the floor while putting on gloves.
3. Constantly maintain the suspension rod's maximum distance at 1.1–1.2 meters.
4. Tee grid runners should always be correctly inserted and locked.
5. Before laying tile, always check it for stains and spots. If anything is there, be sure to carefully clean it first.
